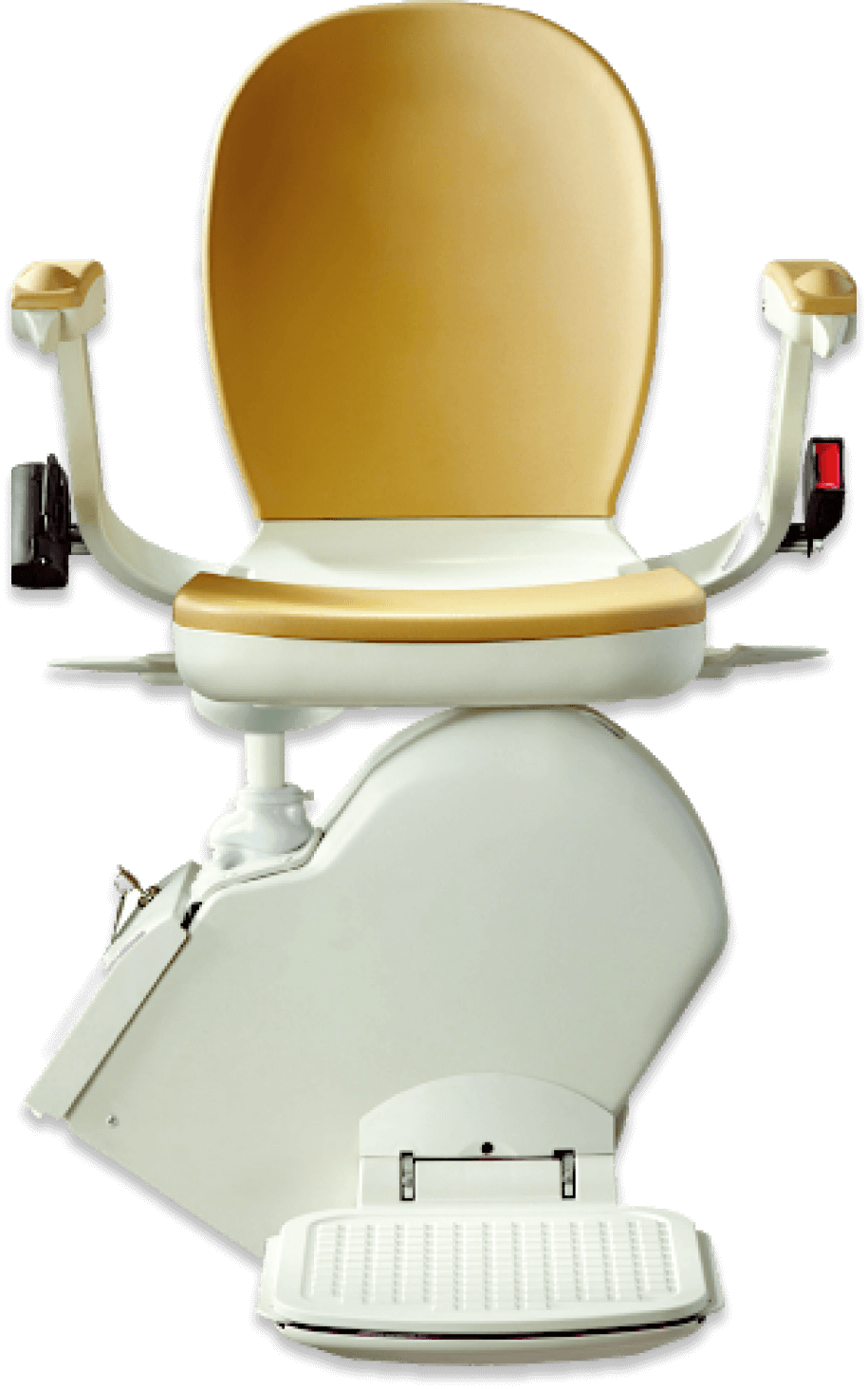

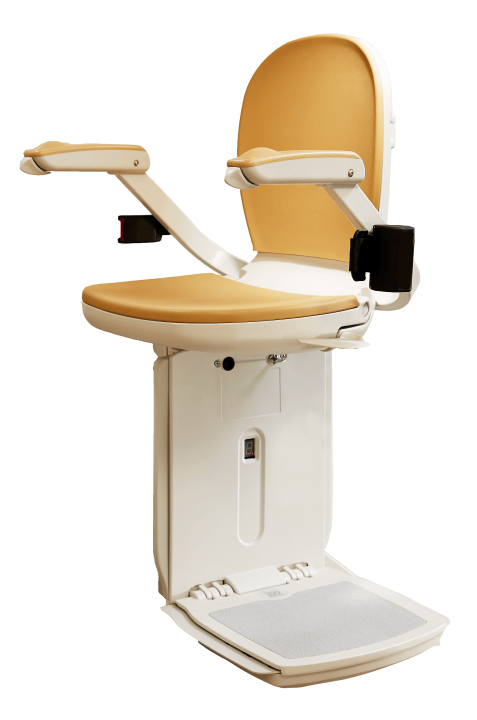

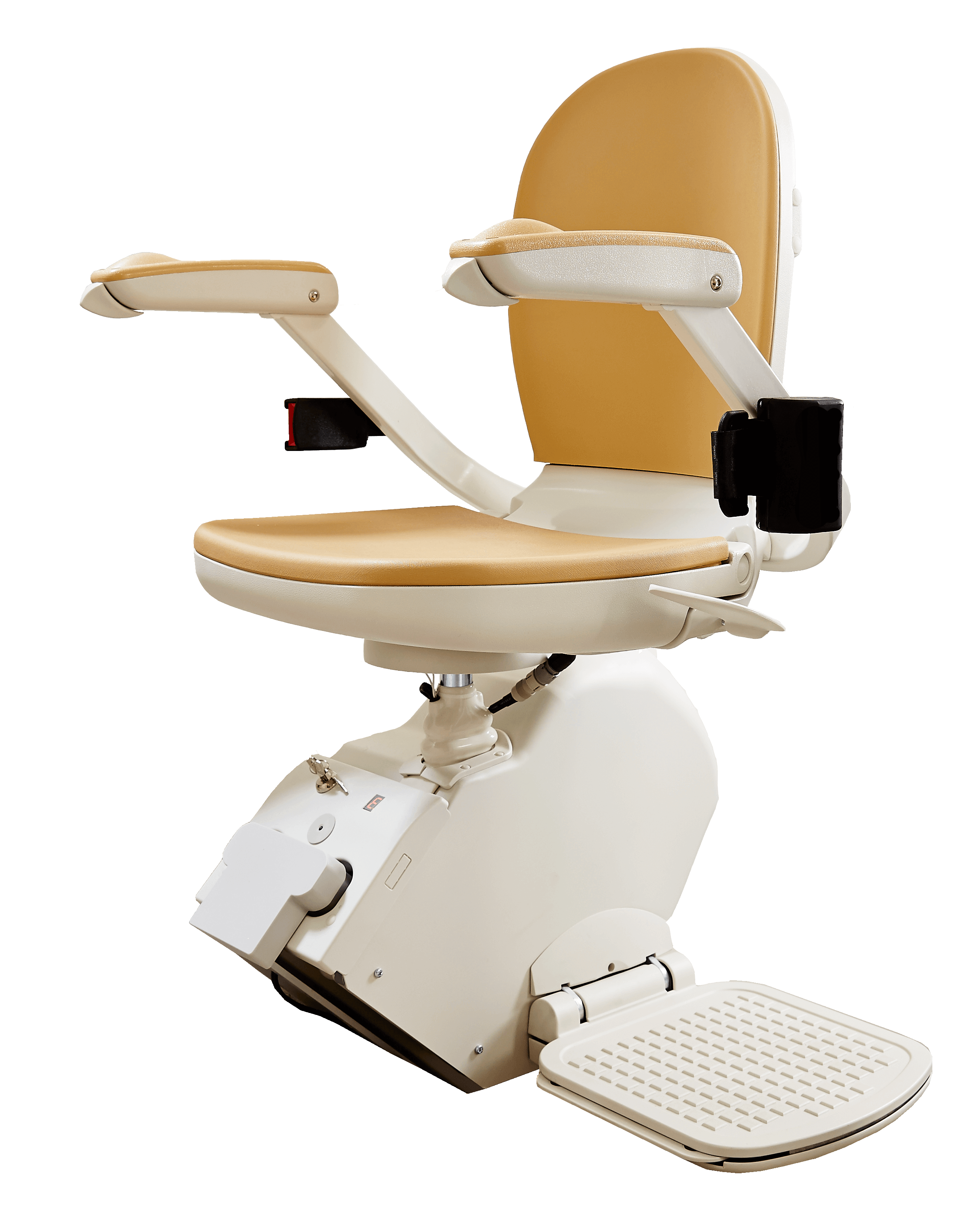

Acorn 130 Outdoor Stairlift

Ensure safe access to all outdoor spaces of your Florida home with the custom designed Acorn 130 Outdoor Stairlift.

A weather resistant outdoor cover is installed for extra protection

Fitted to steps, not the wall for quick and easy installation

No major structural changes required during installation

Designed to stop automatically if an obstruction is encountered

Maximum weight of 300lbs

CLICK HERE FOR TECHINAL DETAILS

Seat	Standard Indoor 130	Power Swivel 130	Outdoor 130
Short seat post	40-55Â°	N/A	N/A
Standard seat post	29-55Â°	36-55Â°	27-55Â°
Tall seat post	23-55Â°	23-55Â°	N/A

Maximum Rail Length
10 metres	394 inches

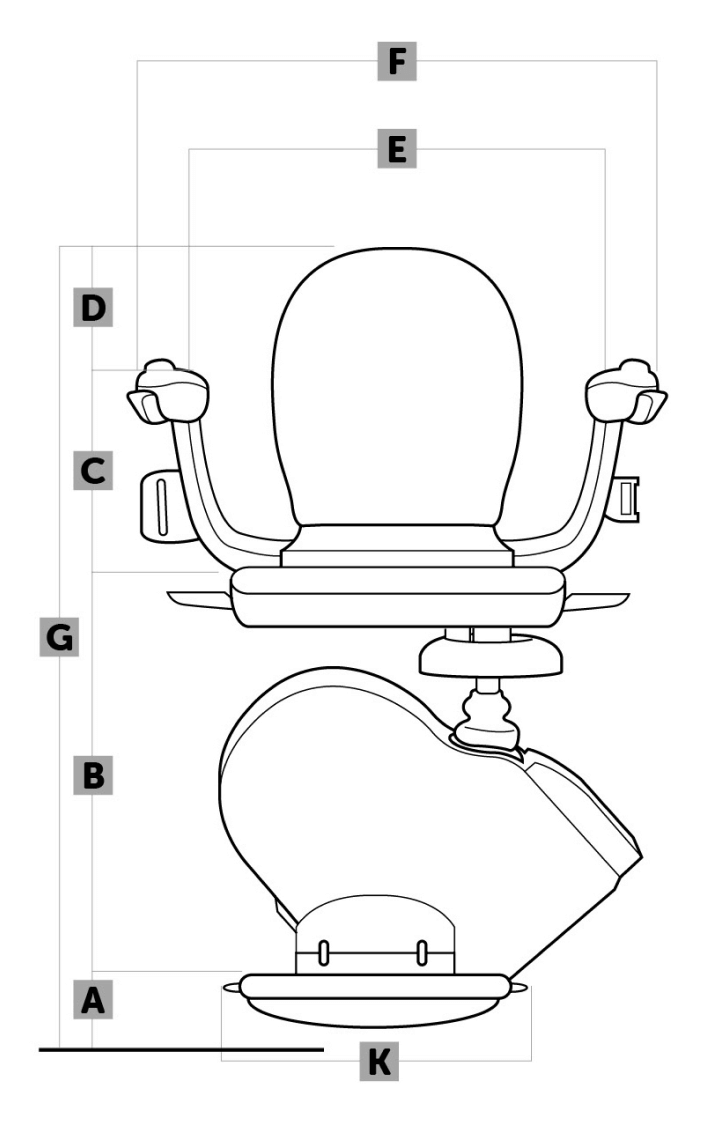

Dimensions		mm	inch
A	Floor to top of footrest	95	3.75
B	Top of footrest to top of seat (Short) (Tall)	445 (410) (505)	17.5 (16.25) (19.75)
C	Top of seat to top of arms	250	9.75
D	Top of arms to top of seat back	190	17.5
E	Width between armrests (Wide arm version)	445 (495)	17.5 (19.5)
F	Overall width	605	23.75
G	Overall height to floor	980	38.5
H	Length of arms from seat back	470	18.5
I	Length of seat base from seat back	435	17
J	Length of footrest	325	12.75
K	Width of footrest	310	12.25
L	Front of footrest to stringer	570	22.5
M	Back of seat to stringer	13	0.5
N	Folded width	310	12.25

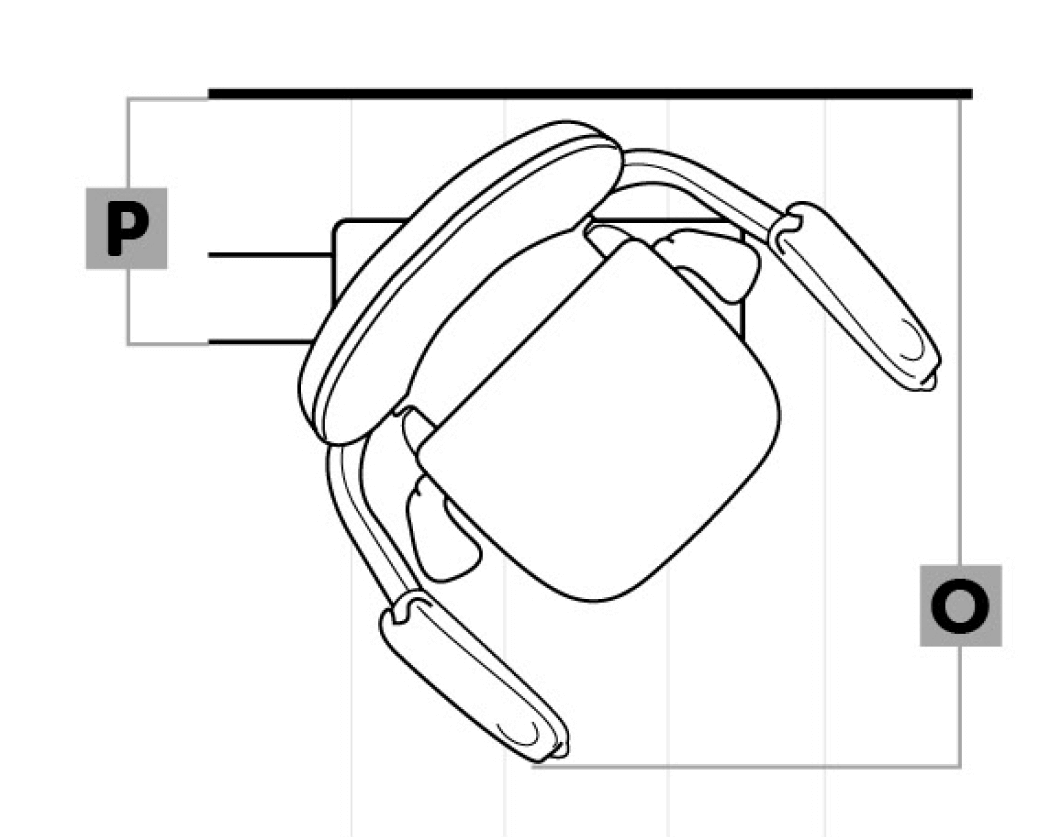

O	Minimum width required to swivel at top	670	26.25
P	Distance from front of rail to stringer (Wide arm version)	215 (240)	8.5 (9.5)

Specifications
Motor output speed	No greater than 0.15 metres per second
Method of drive	Rack and Pinion
Carriage Power	24v DC batteries
Motor Power	0.25KW
Maximum capacity	127kg
Maximum capacity HD version	159kg
Power supply input range	50-60Hz, 120-240V AC

Acorn outdoor Stairlift install in florida

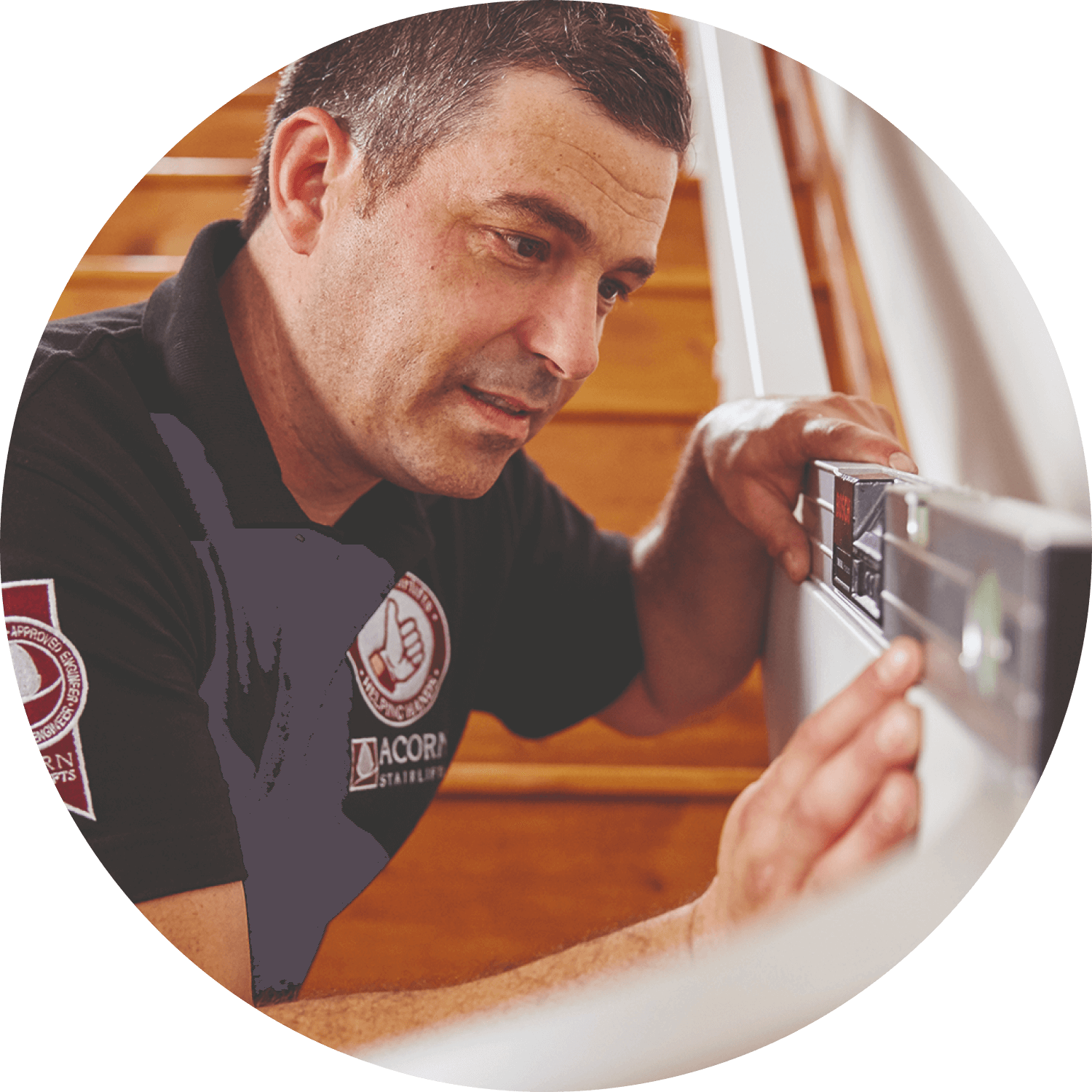

Installing the Acorn 130 Outdoor Stairlift in your home in Florida.

After you have decided to have a custom stairlift fitted in your Florida home, a few days is all that is required to complete installation of your Acorn Outdoor Stairlift.

The Acorn 130 Outdoor Stairlift in your home in Florida Aftercare Services.

Aftercare is a top priority at Acorn, as well as to us as a partner of America's leading stairlift manufacturer. We want to do our best to make sure you're always entirely happy with your Acorn Outdoor Stairlift.
This is why Acorn's dedicated help desk is just a phone call away 365 days a year. Extended stairlift warranties are available too, which means technicians will visit your home in Florida in the unlikely event of a breakdown and also covers the cost of all callouts, parts and labor.

Acorn outdoor Stairlift aftercare in florida

Arrange your FREE quote for a stairlift in Florida by completing the form below.

Simply enter your details below and a trusted Acorn representative will be in touch to arrange a home survey and to provide you with your free no obligation quotation.
